Der Kite-Baum

LibertyKite ist sehr interessiert an unserem Projekt, hat mich sofort zum Ambassadoren erkoren und arbeitet dementsprechend mit an unserem Projekt.

Hier der Feedback auf meinen Vorschlag für die Konstruktion des Kite-Baums:

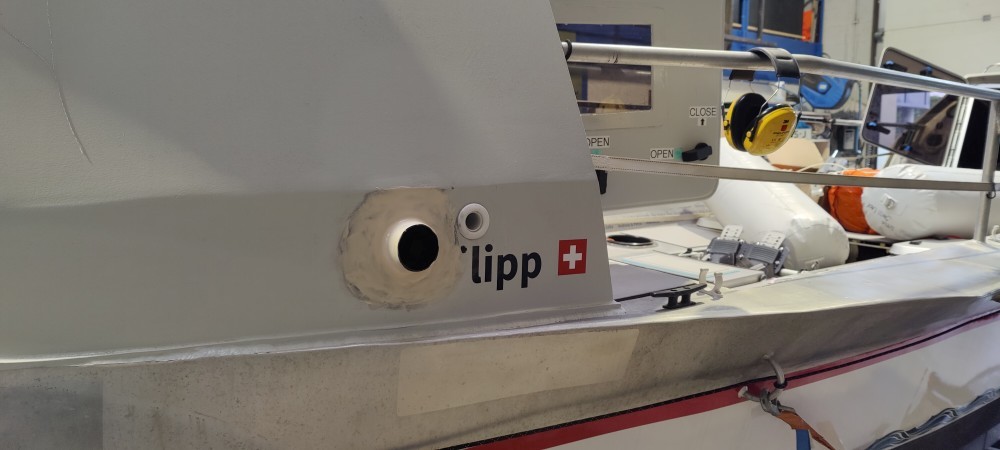

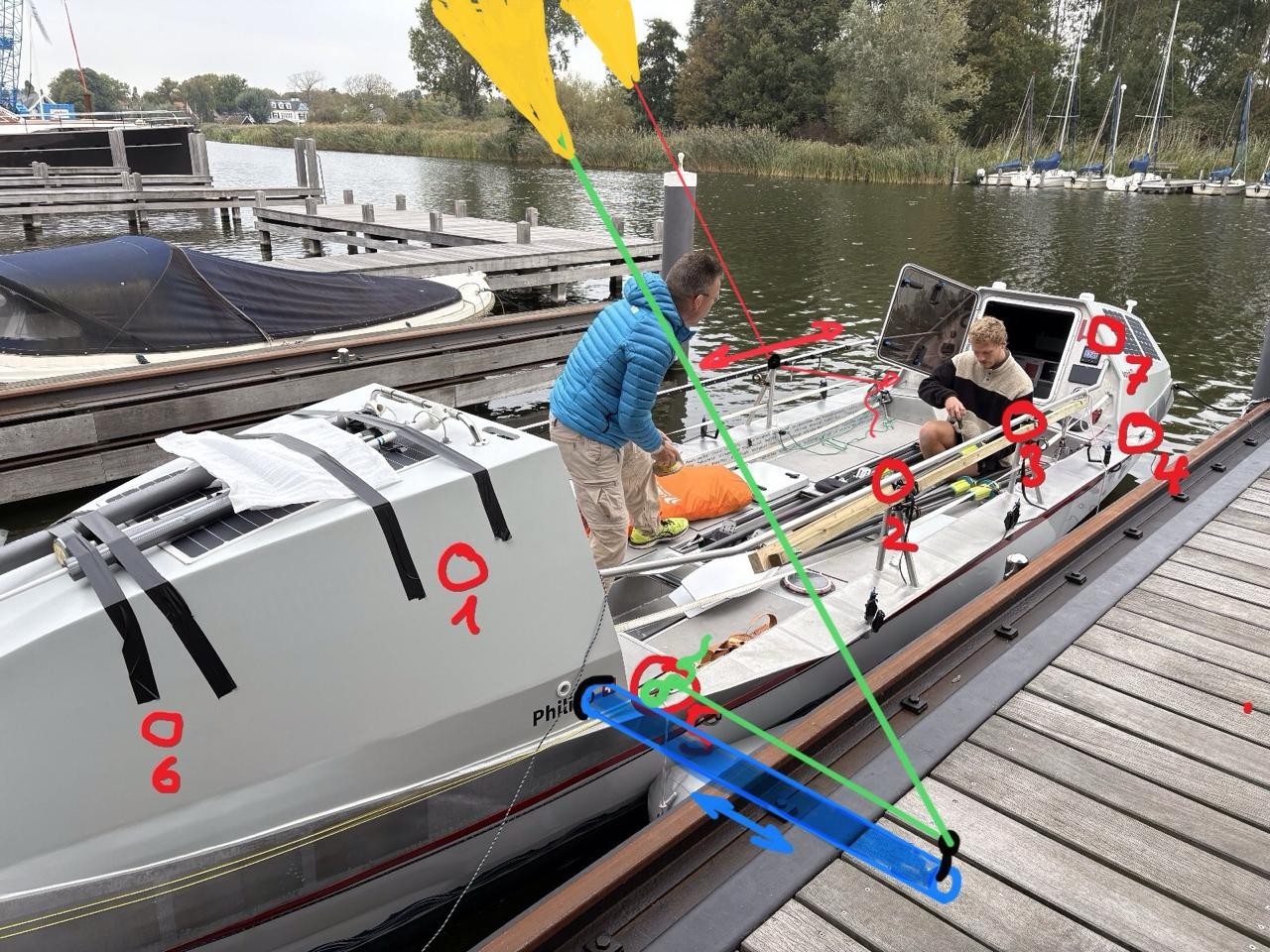

Hello everyone, sorry for my late reply. The daggerboard and rudder are great. For the position of the tube in the forward cabin, I would recommend an axis between Philipp and the Swiss flag. I think this would be less of a disturbance inside than positions 1 and 6, while also keeping the forward pull point lower, which is better for stability. The forward line would be adjusted on mooring cleat 5. For the rear traction points, an adjustable friction ring can be attached along the entire length of the railing between positions 2, 3 and 7, depending on the sailing conditions, before attaching the line to mooring cleat 4. See image. The pulling forces are distributed between the two lines and will rarely exceed 100 kg per line. At your service
